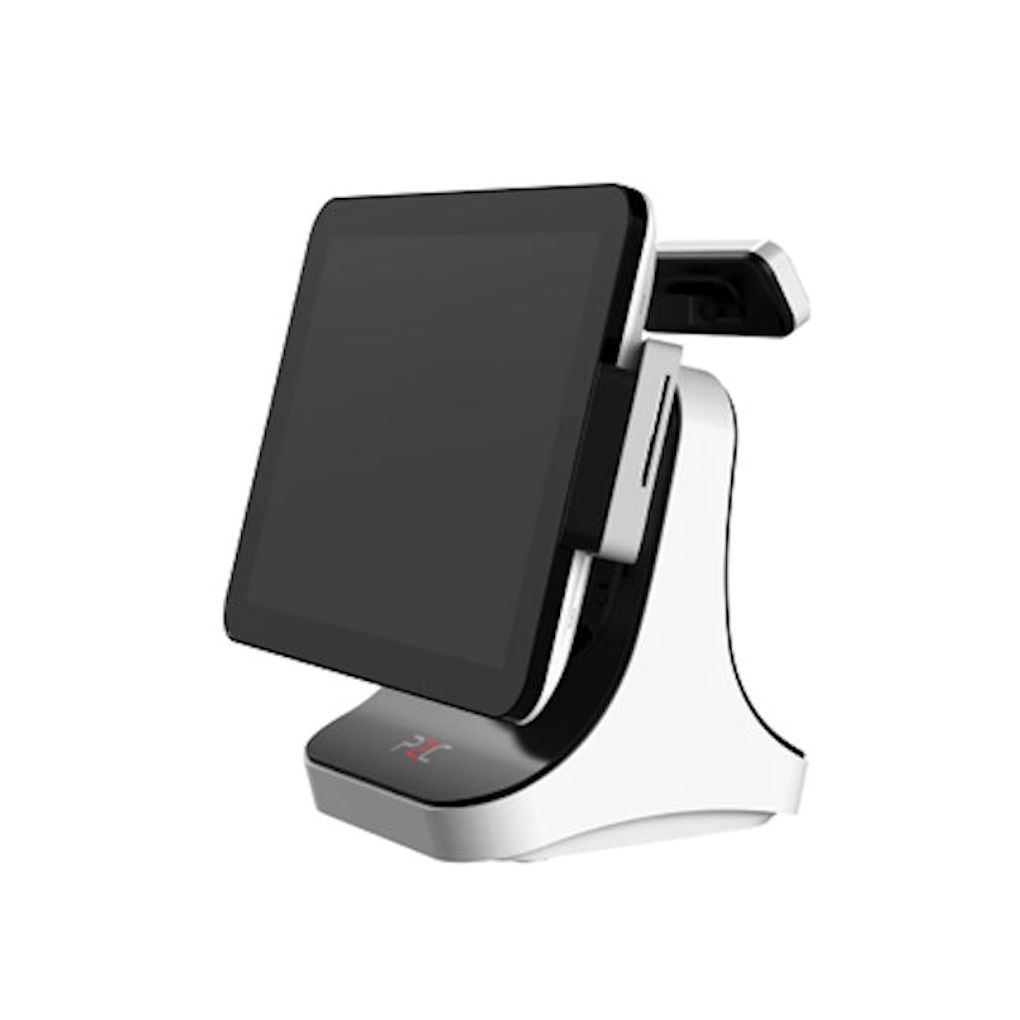

    ICS P2C T-100 Slim & Sleek Style POS System

    Manufacturer: ICS
    ICS P2C T-100 Slim & Sleek Style POS System
    SKU: 09.217.0168
    *
    *
    *
    Availability: Out of Stock - on backorder and will be dispatched once in stock.
    €1103.60
    i h

    Processor                  Intel Celeron™ 1037U

    Chipset                     Intel NM70 Express Chipset



    Storage Device

    2.5" SATA-II SSD 64GB (default) or HDD 320GB (optional)

    Memory

    Single-Channel DDR3 Connector for 1066/800MHz x 1, default 2GB up to 4GB

    Graphics

     Intel Graphics Media Accelerator 3600

     Intel HD Graphics (350MHz-1GHz)

    BIOS

    AMI BIOS

    OS

    POS Ready2009, POS Ready 7

    Main Display

    15" with WLED Backlight (1024 x 768), Single LVDS 24bits
    Supports 5-Wired Resistive Flat or Normal Type Touch Panel
    Supports Tilt (0? ~ 53?)
    10°-60° Viewing Angle, 300:1 Contrast, Above 350cd/m2 Brightness

    LAN

    1 x 10/100/1000Mbps Base T Ethernet

    Serial Port

    2 x DB9 and 1 x RJ50 Serial Ports,
    Powered on Pin 9 (DC+5V or DC+12V)

    USB

    6 x USB A type 2.0, 1 x mini USB B type 2.0

    Special USB

    1 x mini USB type A, B

    VGA

    D-SUB 15 pin Analog VGA port

    Cash Drawer

    1 x RJ11 (12V) on the Right Rear Side

    Audio Ports

    1 x Mic-in, 1 x Audio-out

    Speaker Out

    1watt Speaker (Stereo) X 2EA

    Expansion Slot

    miniPCI-e

    2nd Display

    10" or 15 with WLED back light (1024 x 768), Single LVDS 24bit or 18bit
    Support 5-wired resistive touch panel (optional)
    Support tilt (15? ~ 45?) and swivel : 25?
    10°-60° Viewing Angle, 300:1 Contrast, 300cd/m2 Brightness

    Customer Display

    VFD Type (20 x 2), Alphabet & Numeric, Supports 15° – 90° Tilt and 25° Swivel

    Touch Panel

    Support 5-wired resistive Flat Touch panel

    MSR

    ISO7811, All Track
    USB (default) and Serial (CMOS setting) interface
    Bi-Directional reading, min. 1million times reading
    Card reading speed 3inch to 60inch/sec

    Smart Card Reader

    ISO7816 EMV level 1

    Dallas Reader

    Supports PC/SC(Personal Computer/Smart Card)

    Dimensions

    354 x 246 x 339 (W x D x H, mm)

    Weight

    5.5 (Kg)

    Color

    White & Black

    Power Supply

    100V AC ~ 240V AC, DC12V-5A Adaptor, 60 watt

    Temperature

    Operating: 0 ~ 40?C, Storage: 0 ~ 60?C

    Humidity

    10 ~ 80% Humidity























































    Το προίον καλύπτεται από 1 χρόνο εγγυηση καλής λειτουργίας απο τον κατασκευαστή του, από την ημερομηνία αγοράς.



    Απαραίτητη προϋπόθεση να έχετε διαθέσιμη την απόδειξη αγοράς.



    Το κόστος αποστολής του προϊόντος στην έδρα μας επιβαρύνει τον πελάτη.

    Το κόστος επιστροφής του προϊόντος , εφόσον είναι εντός Εγγύησης επιβαρύνει την STEEL.gr
