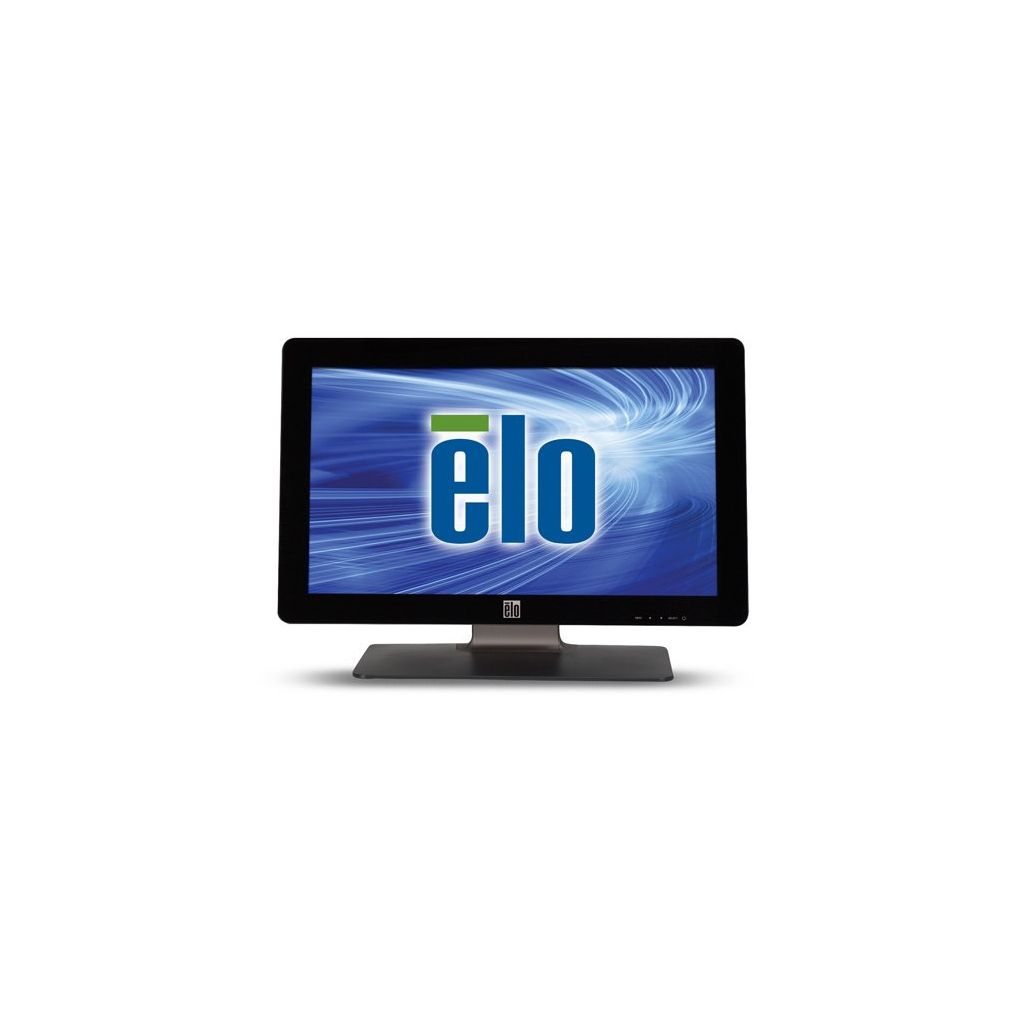

| Model |
2201L |
|---|
| Form factor |
Desktop |
|---|
| Display |
22" diagonal, Active matrix TFT LCD
with LED backlights |
|---|
| Aspect ratio |
16:9 Widescreen |
|---|
| Useful screen area |
Horizontal: 18.8" (477 mm)
Vertical: 10.6" (268 mm) |
|---|
Monitor dimensions
(with stand) |
Width: 21.7" (551 mm)
Height: 15.4" 392 mm)
Depth: 7.6" (193 mm) |
|---|
| Native (optimal) resolution |
1920x1080 |
|---|
| Other supported resolutions |
640x480 60Hz
720x576 50Hz
800x600 56, 60Hz
1024x768 60Hz
1280x720 50, 60Hz
1280x960 60Hz
1280x1024 60Hz
1366x768 60Hz
1440x900 60Hz
1680x1050 60Hz
1920x1080 50, 60Hz |
|---|
| Colors |
16.7 million |
|---|
Brightness
(typical) |
LCD panel: 250 nits
iTouch: 225 nits
IntelliTouch Plus: 225 nits
PCAP: 225 nits |
|---|
| Response time - total (typical) |
5 msec |
|---|
Viewing angle
(typical) |
Horizontal: ±85° or 170° total
Vertical: ±80° or 160° total |
|---|
| Contrast ratio (typical) |
1000:1 |
|---|
| On-screen display (OSD) |
Controls: Menu, Up, Down, Select
Settings:
Brightness, Contrast, Clock, Phase, H-position, Vposition, Auto-Adjust,
Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language,
OSD Rotation, Volume, Mute, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power |
|---|
Input Video
|
Analog VGA on Female DE-15 connector
Digital DVI on Female DVI-D connector
Horizontal Sync Frequency Range: 32-80KHz
Vertical Sync Frequency Range: 50-75 Hz |
|---|
| Power supply |
DC (external power adapter included with unit) |
|---|
| Input voltage |
AC/DC Adapter: 100-240 VAC, 50/60 Hz
Monitor: 12 VDC ±5% |
|---|
| Input connector |
AC/DC Adapter: IEC 60320 C14
Monitor: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length) |
|---|
| Power consumption (typical) |
29W |
|---|
