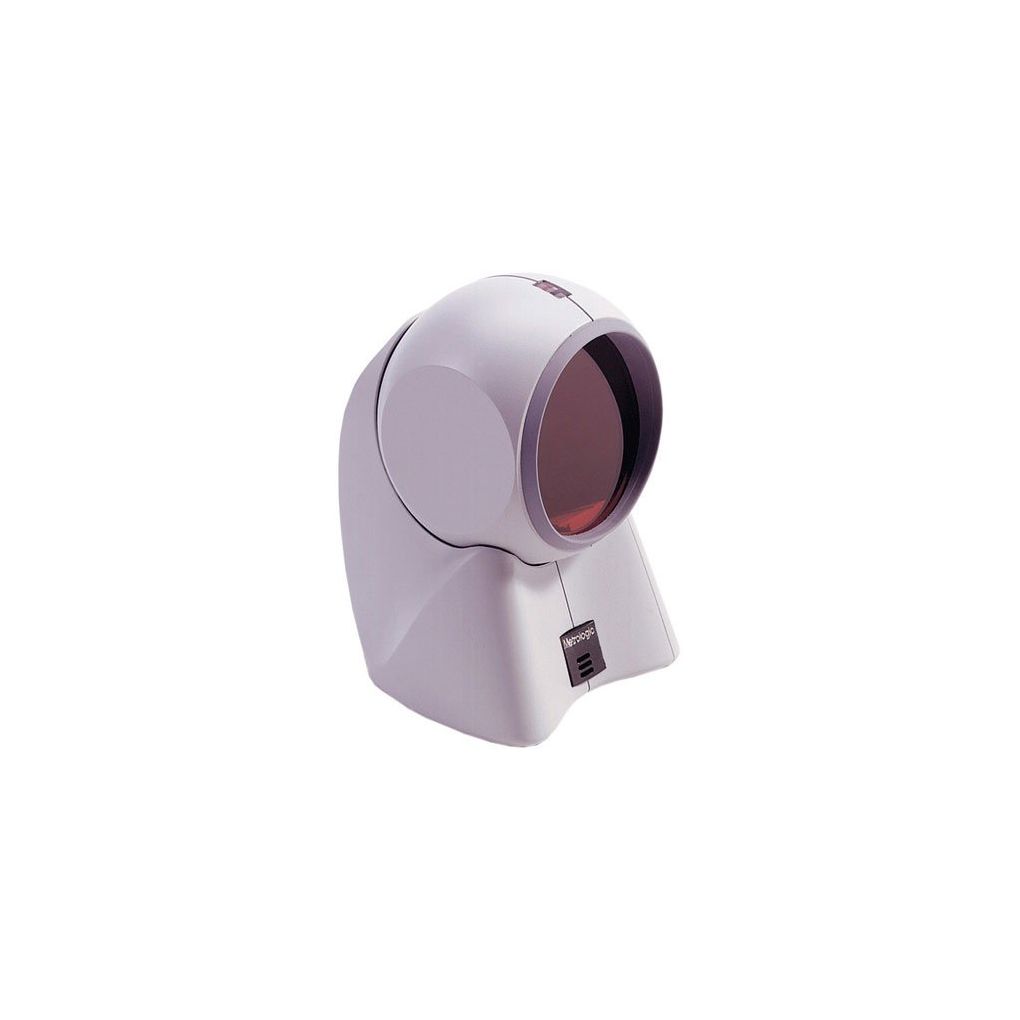

SCANNER MS-7180 Orbit 1D

SCANNER MS-7180 Orbit 1D
SKU: 09.217.1205
€450.00
Availability: In stock
- +

Features and Benefits

Features Benefits
20 scan line omni-directional pattern Provides aggressive scanning as an additional benefit to hand presentation applications
Sweet Spot Scanning Engineered “sweet spot” to optimize scan performance and first pass read rate
Adjustable scan head Ability to tilt scanner 30? for targeted scanning or larger products
Flash ROM Protects infrastructure investment - update firmware from any PC with MetroSet®2 software
provided free from Metrologic
Automatic scanning operation Simply present a bar code and the unit scans in a single pass

Specs

Quick Specs (for full specifications, please refer to the download tab. Full specifications can be found in the data sheet or user's guide)
Depth of Scan Field: (programmable) 0 mm - 215 mm (0” - 8.5”) for 0.33 mm (13 mil) bar codes
Width of Field: 60 mm (2.4”) @ face; 105 mm (4.1”) @ 216 mm (8.5”)
Scan Speed: 1120 scan lines per second
Minimum Bar Width: 0.13 mm (5.2 mil)
System Interfaces: PC Keyboard Wedge, RS232, Light Pen Emulation, IBM 468X/469X, USB
Light Source: Visible Laser Diode 650 nm ± 10 nm

Standard MS7120 Colors
Light Grey

 Black

Sample only, actual colors may vary MS7120 is available in a variety of other colors with minimum quantity purchase

Features and Benefits

Features Benefits
20 scan line omni-directional pattern Provides aggressive scanning as an additional benefit to hand presentation applications
Sweet Spot Scanning Engineered “sweet spot” to optimize scan performance and first pass read rate
Adjustable scan head Ability to tilt scanner 30? for targeted scanning or larger products
Flash ROM Protects infrastructure investment - update firmware from any PC with MetroSet®2 software
provided free from Metrologic
Automatic scanning operation Simply present a bar code and the unit scans in a single pass

Specs

Quick Specs (for full specifications, please refer to the download tab. Full specifications can be found in the data sheet or user's guide)
Depth of Scan Field: (programmable) 0 mm - 215 mm (0” - 8.5”) for 0.33 mm (13 mil) bar codes
Width of Field: 60 mm (2.4”) @ face; 105 mm (4.1”) @ 216 mm (8.5”)
Scan Speed: 1120 scan lines per second
Minimum Bar Width: 0.13 mm (5.2 mil)
System Interfaces: PC Keyboard Wedge, RS232, Light Pen Emulation, IBM 468X/469X, USB
Light Source: Visible Laser Diode 650 nm ± 10 nm

Standard MS7120 Colors
Light Grey

 Black

Sample only, actual colors may vary MS7120 is available in a variety of other colors with minimum quantity purchase

Το προίον καλύπτεται από 1 χρόνο εγγυηση καλής λειτουργίας απο τον κατασκευαστή του, από την ημερομηνία αγοράς.

Απαραίτητη προϋπόθεση να έχετε διαθέσιμη την απόδειξη αγοράς.

Το κόστος αποστολής του προϊόντος στην έδρα μας επιβαρύνει τον πελάτη.

Το κόστος επιστροφής του προϊόντος , εφόσον είναι εντός Εγγύησης επιβαρύνει την STEEL.gr
