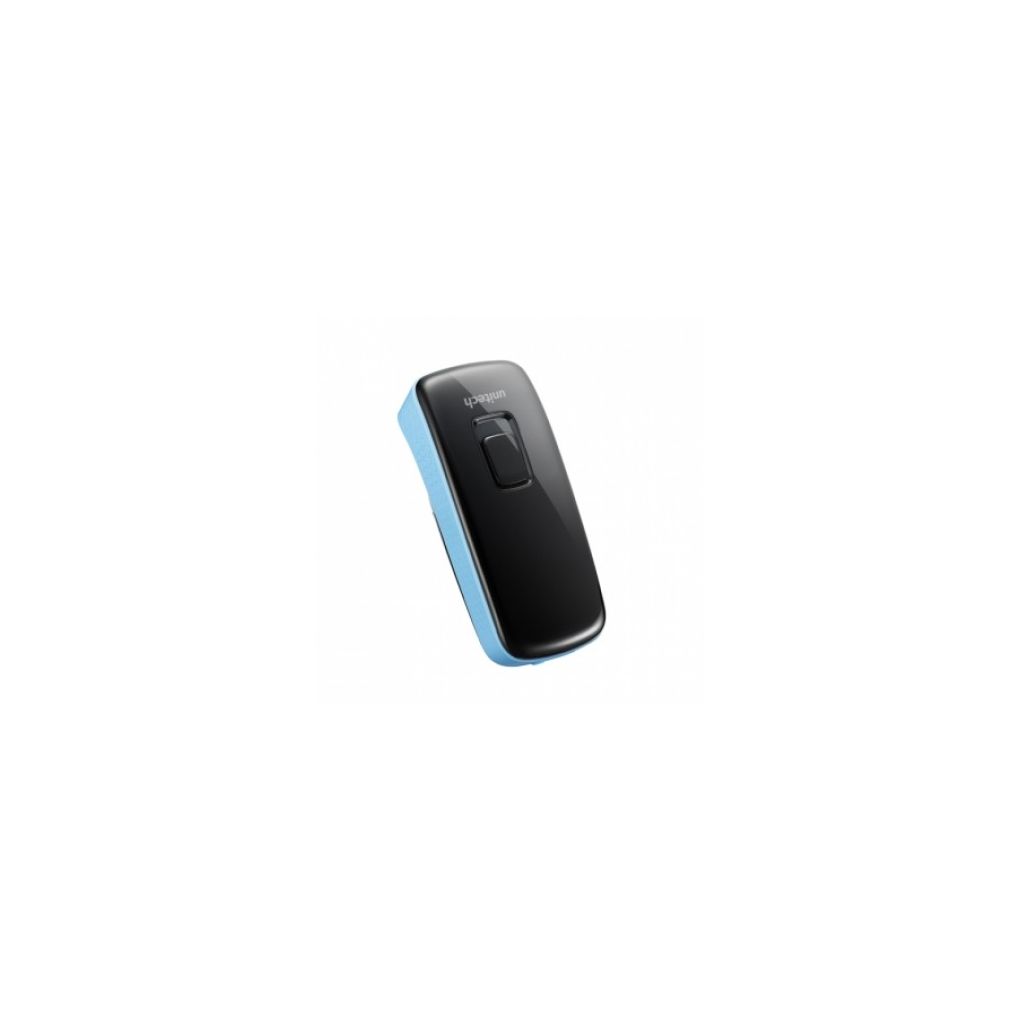

SCANNER UNITECH MS 920 2D,IMAGER,USB,LANYARD

Brand: UNITECH
SCANNER UNITECH MS 920 2D,IMAGER,USB,LANYARD
Κωδικός προϊόντος: 09.217.0707
€467,48
Διαθεσιμότητα: Διαθέσιμο
- +



MS920 Advanced 2D Pocket imager
Παρόλο το μικρό του μέγεθος το MS920 διαβάζει 1D, 2D, QR CODE, και έχει δυνατότητα αποστολής δεδομένων ασύρματα έως 100 μέτρα σε ανοικτό χώρο!!!

Unitech MS920 is a new generation of wireless 2D barcode scanner that doubles the excellent decoding performance in a pocket-sized enclosure. Thanks to its compact & lightweight design for easy mobilityMS920 allows enterprises to simply scan and transmit 1D and 2D barcode in real time to the host wirelessly or to store scanned data in the built-in memory.





  • Optical & Performance

  • Optical & Performance Image Sensor, 752 x 480 pixels
    Light Source Illumination: Highly visible white LED
    Aiming : 617 nm red LED
    Max. Resolution 1D codes 0.1 mm (4 mils)
    2D codes 0.167 mm (6.6 mils)
    Skew Angle ±58 degrees
    Pitch AngleSensor ±86 degrees
    Printing Contrast Scale 30%
    Motion Tolerance 4 inches per second
    Reading Distance(DOF PCS=100%) Symbology | Density | Near | Far
    Code 39, 4 mils | 6.0 cm | 18.0 cm
    Code 39, 5 mils | 4.50 cm | 22.50 cm
    Code 39, 20 mils | 6.00 cm | 64.00 cm
    Code 39, 40 mils | 12.50 cm | 97.50 cm
    -------------------------------------------------------
    EAN/UPC, 13 mils | 4.5 cm | 41 cm
    -------------------------------------------------------
    DataMatrix, 7 mils | 6.5 cm | 15 cm
    DataMatrix, 10 mils | 4.5 cm | 21 cm
    DataMatrix, 15 mils | 4.7 cm | 31 cm
    -------------------------------------------------------
    PDF417, 6.6 mils | 5 cm | 18.2 cm
    PDF417, 10 mils | 3.7 cm | 27.5 cm
    PDF417, 15 mils | 4.5 cm | 40 cm
    *=dependent on width of bar code
  • Functionality

  • Symbologies 1D: EAN/UPC, GS1 Databar (limited
    expanded & omni-directional), Code 39, Code 128,
    UCC/EAN 128, ISBN, ISBT, Interleaved/Matrix/
    Industrial and Standard 2 of 5, Codabar, Code 93/93i,
    Code 11, MSI, Plessey, Telepen,

    2D: Data Matrix, PDF417, Micro PDF 417,
    Codablock, Maxicode, QR, Aztec
    Postal: Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post

    Operation Mode Trigger Mode, Flash Mode, Continuous Mode, Buffer mode
    Data Formatting Prefix, Suffix, Code ID
  • Electrical

  • Operation Voltage DC 3V to 5V
    Current Consumption Operation mode: 76.8mA
    Battery Type Rechargeable Lithium-ion battery
    Battery Duration 1100mAh
    Battery Charging time Fully charged in 4 hours
    Operating Time Over 13 hours ( 1 scan / 3 seconds)








MS920 Advanced 2D Pocket imager
Παρόλο το μικρό του μέγεθος το MS920 διαβάζει 1D, 2D, QR CODE, και έχει δυνατότητα αποστολής δεδομένων ασύρματα έως 100 μέτρα σε ανοικτό χώρο!!!

Unitech MS920 is a new generation of wireless 2D barcode scanner that doubles the excellent decoding performance in a pocket-sized enclosure. Thanks to its compact & lightweight design for easy mobilityMS920 allows enterprises to simply scan and transmit 1D and 2D barcode in real time to the host wirelessly or to store scanned data in the built-in memory.





  • Optical & Performance

  • Optical & Performance Image Sensor, 752 x 480 pixels
    Light Source Illumination: Highly visible white LED
    Aiming : 617 nm red LED
    Max. Resolution 1D codes 0.1 mm (4 mils)
    2D codes 0.167 mm (6.6 mils)
    Skew Angle ±58 degrees
    Pitch AngleSensor ±86 degrees
    Printing Contrast Scale 30%
    Motion Tolerance 4 inches per second
    Reading Distance(DOF PCS=100%) Symbology | Density | Near | Far
    Code 39, 4 mils | 6.0 cm | 18.0 cm
    Code 39, 5 mils | 4.50 cm | 22.50 cm
    Code 39, 20 mils | 6.00 cm | 64.00 cm
    Code 39, 40 mils | 12.50 cm | 97.50 cm
    -------------------------------------------------------
    EAN/UPC, 13 mils | 4.5 cm | 41 cm
    -------------------------------------------------------
    DataMatrix, 7 mils | 6.5 cm | 15 cm
    DataMatrix, 10 mils | 4.5 cm | 21 cm
    DataMatrix, 15 mils | 4.7 cm | 31 cm
    -------------------------------------------------------
    PDF417, 6.6 mils | 5 cm | 18.2 cm
    PDF417, 10 mils | 3.7 cm | 27.5 cm
    PDF417, 15 mils | 4.5 cm | 40 cm
    *=dependent on width of bar code
  • Functionality

  • Symbologies 1D: EAN/UPC, GS1 Databar (limited
    expanded & omni-directional), Code 39, Code 128,
    UCC/EAN 128, ISBN, ISBT, Interleaved/Matrix/
    Industrial and Standard 2 of 5, Codabar, Code 93/93i,
    Code 11, MSI, Plessey, Telepen,

    2D: Data Matrix, PDF417, Micro PDF 417,
    Codablock, Maxicode, QR, Aztec
    Postal: Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post

    Operation Mode Trigger Mode, Flash Mode, Continuous Mode, Buffer mode
    Data Formatting Prefix, Suffix, Code ID
  • Electrical

  • Operation Voltage DC 3V to 5V
    Current Consumption Operation mode: 76.8mA
    Battery Type Rechargeable Lithium-ion battery
    Battery Duration 1100mAh
    Battery Charging time Fully charged in 4 hours
    Operating Time Over 13 hours ( 1 scan / 3 seconds)
